JK3199 20/30/40m Pipeline Drain sewer Duct TV inspection camera

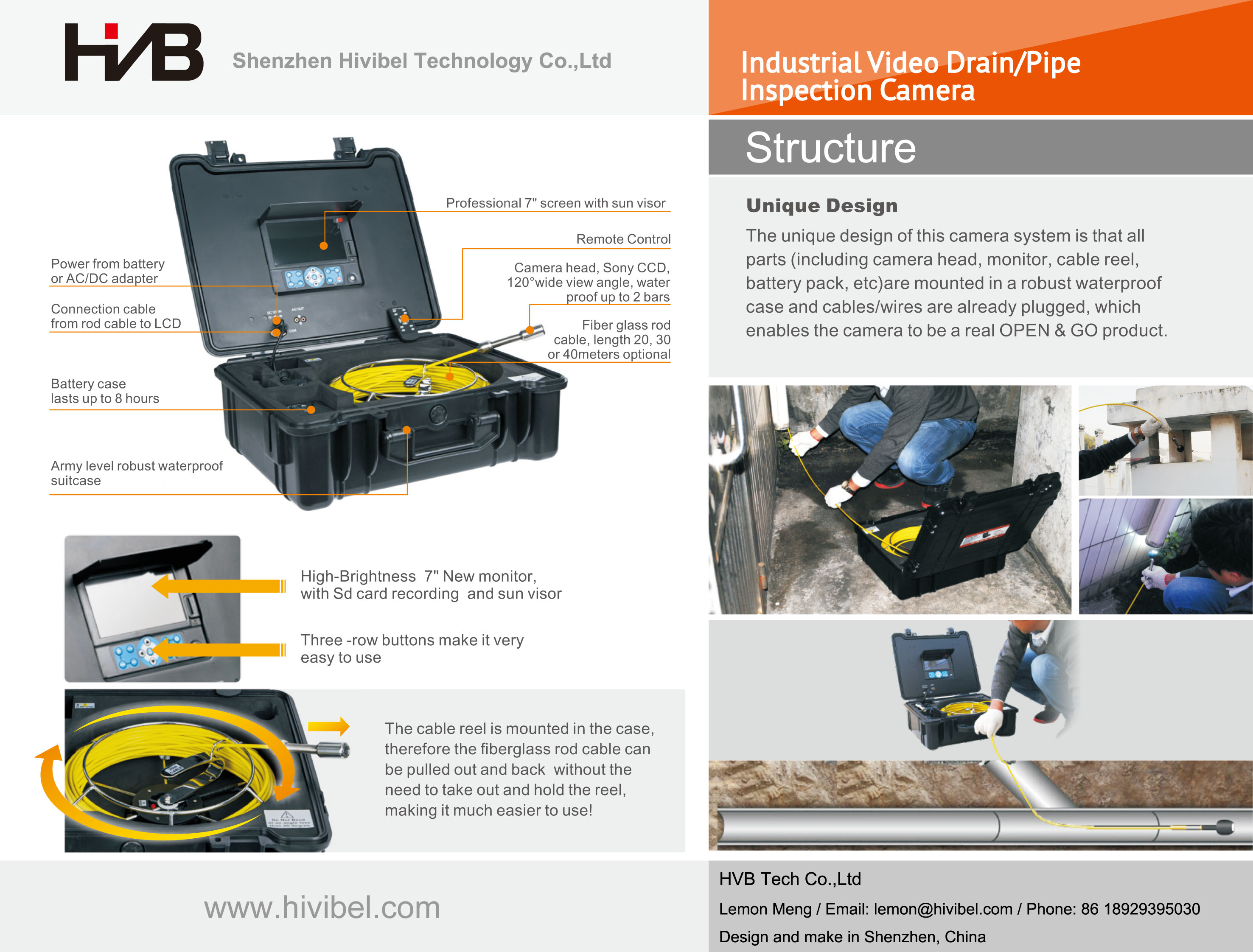

It is with super short 304# stainless steel 120° wide view angle 1/3" SONY CCD camera (Dia. 23mm), 7" color TFT LCD monitor and DVR recording feature, Sapphire glass lens cover, optional meter counter.
Cable reel is fixed and rotatable in the case, no need to take out and hold on hand when in using.Battery lasts up to 8 hours continuous working
Applications:
It is specialized for Professional Pipeline, Drain, Sewer, Duct, Chimneys, Machinery and Building Inspection, Maintenance of Plumbing and Wiring behind walls ect.
Product details:
|

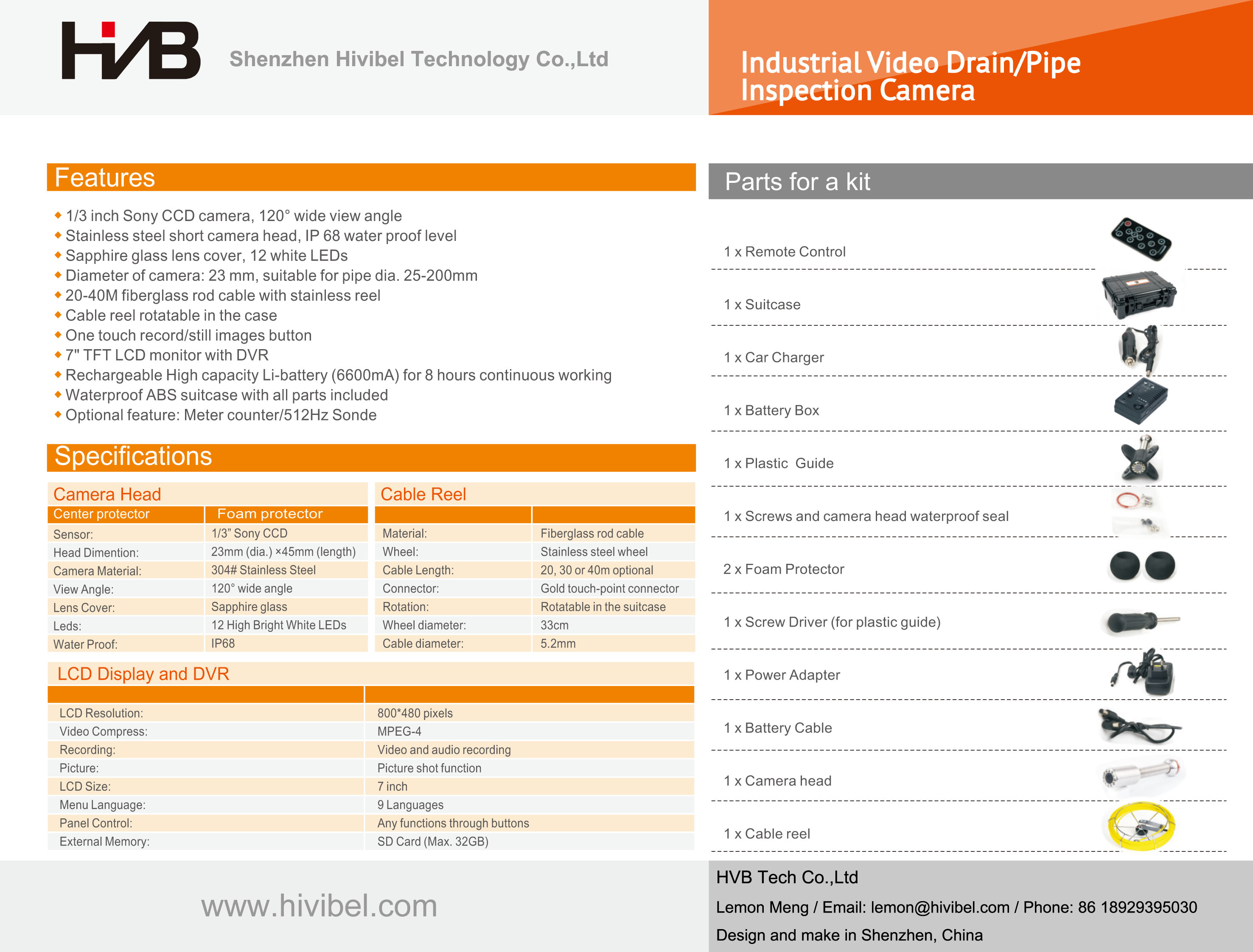

Specifications
|
||
|
Camera
|
Sensor
|
1/3’ Sony CCD
|
|
Viewing Angle
|
135°
|
|
|
TV Line
|
480TVL
|
|
|
View Angle
|
55°
|
|
|
Focus Distance
|
20cm (approx)
|
|
|
Depth-of-View
|
100cm (approx)
|
|
|
Front Lens
|
Sapphire
|
|
|
Water-Proof
|
20M water(camera fix on cable)
|
|
|
DVR
|
Screen
|
7’’ 16:9 super bright high-definition color LCD Screen
|
|
Resolution
|
800*480 RGB
|
|
|
Mirror and Flip
|
Support image mirror, flip, mirror&flip
|
|
|
Video Resolution
|
720*576 25FPS/720*488 30FPS(NTSC)
|
|
|
Photograph
|
720*480/720*576
|
|
|
Data Output
|
USB2.0 to PC
|
|
|
LED Driver
|
Built-in Dimmer
|
|
|
Language
|
English, German, French, Spanish, Italian, etc.
|
|
|
Cable Wheel
|
Cable Diameter
|
5.2 mm
|
|
Cable Length
|
20/30/40 meter(Selectable)
|
|
|
Box
|
Size
|
517*434*200 mm(L*W*H)
|
|
Box Color
|
Black / Yellow
|
|
