3'' TFT HD 720P Video Borescope with 1m camera probe coiled inside the case for storage
Portable Design
Simple Operation
High Performance
Small Size
Light Weight
Saving Space & Freight

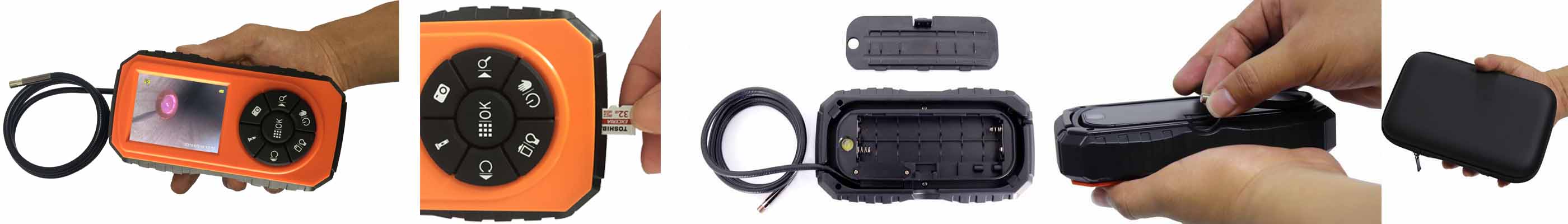

Product details:
FEATURES
*1M IP67 waterproof snake camera probe is coiled inside the case for storage
*The camera tip accessories are stored in a small holder inside the case for convenient collection
*3 inch high contrast color LCD
*5.5MM HD ultra small camera lens with flexible snake tube
*6 light-adjustable LEDs mounted on lens
*7 navigation buttons for functional partition
*Photo and video function when the memory card is placed
*Support Micro SD card MAX. 32GB( optional, excluding SD card)
*Flashlight function
*Powered by four “AA” batteries (not included)
*Compact rugged structure design makes small size, portable and convenient to carry
*Small package makes less space, lower freight cost and warehouse fee
SPECIFICATIONS
| Items | Product Standard | Specifications |
| Snake Tube Camera | Camera Lens | SCMOS |
| Resolution | 1280*720 | |
| Viewing Angle | 65° | |
| Focal Distance | 3.5CM | |
| Depth of Field(DOF) | 0.7CM-30CM | |
| Light Source | 6LED | |
| LED Light Irradiation Distance | 30CM | |
| Camera Outer Diameter | 5.5MM | |
| Length of Metal Camera Part | 2.4CM | |
| Video Output | / | |
| Temperature detection range | 0-80° | |
| Working Current | 95MA | |
| Working Voltage | 3.5V-5V | |
| Working Temperature | 45° | |
| Working Humidity | 5%-95% | |
| TFT Display | Size（Active area） | 3inch |
| Resolution | 640*480 | |
| Luminance for LCM | 400 | |
| Image Zoom | 1-4times | |
| Image flip | 180°flip | |
| Brightness Control | / | |
| Video | Video input/Output | 1280*720 |
| Image/Video Resolution | 1280*720 | |
| Signal Format | Digital | |
| Image Format | JPG | |
| Video Format | AVI | |
| Internal memory | TF card | |
| Power Supply | Working Voltage | 6V |
| Working Current | 380MA | |
| Internal Dry Battery | 4AA | |
| Work Time | Continuous working time | 2hours |
| Product Dimension | L*W*H(mm) | 160mm x 85mm x 35mm |
| Product Weight | Unit（g) | 0.6kg |
| Package Dimension | L*W*H(mm) | 180mm x 120mm x 42mm |
| Package Weight | Unit（g) | 0.8kg |
APPLICATIONS
Automobile service, Aviation maintenance, Archaeological expedition, Lab observation, Search and rescue, Oil&Gas industry inspection, Equipment or Furnishing installation, etc.
Notice:All graphics and specifications are subjuct to minor change without prior Notice. All rights reserved.
